Understanding Solar Panels and How to Calculate Charging Time for Batteries

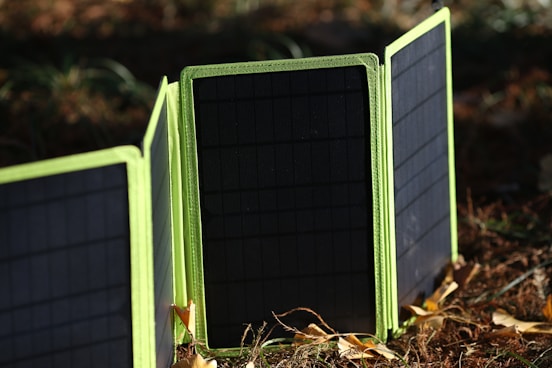

Solar panels are devices that convert sunlight into electricity through photovoltaic (PV) cells. These panels capture the sun’s energy, which is then used to charge batteries, power devices, or even feed back into the grid. But how do you calculate how long it takes for a solar panel to charge a battery? Here’s a quick guide to help you out:
Key Factors That Affect Charging Time:
Battery Capacity: Measured in amp-hours (Ah) or watt-hours (Wh), this is the total amount of energy a battery can store.
Solar Panel Output: Solar panels are rated by their power output, typically in watts (W). This is how much power they can generate under optimal sunlight conditions.
Sunlight Hours: This refers to the number of hours per day your solar panel can receive full sunlight, which depends on your location and weather conditions.
Efficiency: Efficiency losses can occur during the conversion of solar power to battery power. Typically, solar systems have an efficiency loss of about 20%.
How to Calculate Charging Time:
To calculate how long it will take a solar panel to charge a battery use the formula below:
Charging Time (hours) = Battery Capacity (Wh) ÷ Solar Panel Output (W) × Sunlight Hours per Day × Efficiency Factor
Example:
Battery: 12V, 100Ah (12V × 100Ah = 1200Wh)
Solar Panel: 200W
Sunlight Hours: 5 hours/day
Efficiency: 80% (0.8)
Charging Time = 1200Wh ÷ 200W × 5 hours × 0.8 = 24 hours
This means it will take approximately 24 hours of good sunlight to fully charge a 12V, 100Ah battery using a 200W solar panel.
Things to Consider:
More Solar Panels = Faster Charging: Using multiple panels or higher-output panels can speed up the charging process.
Consider Weather Variability: Cloudy or rainy days will reduce the amount of solar energy generated.
Battery Size Matters: Larger batteries will take longer to charge, so always match your solar panel output with your battery capacity for optimal performance.
Can You Use an 18V Panel to Charge a 12V Battery?
Yes, you can use an 18V solar panel to charge a 12V battery. Here’s how it works:
Voltage Mismatch: Solar panels generally have a higher voltage rating than the batteries they charge. For example, a 12V battery typically charges at around 14.4V (using a charge controller), while an 18V panel is often used to charge a 12V battery to account for voltage loss during the charging process.
Charge Controller: To safely charge a 12V battery with an 18V panel, you will need a charge controller. The controller regulates the voltage and current coming from the panel, ensuring the battery is not overcharged or damaged. Most charge controllers have a built-in mechanism to handle voltage differences between the panel and the battery.
Why Use an 18V Panel?: An 18V panel provides a little "extra" voltage, ensuring that even in less-than-ideal sunlight conditions, the panel still provides enough power to charge the battery effectively.
